3 Fast Ways to Toggle AutoCAD Selection Cycling, Plus Trainer Habits
Selection cycling lets you grab the exact object you want out of a stack of overlapping lines, walls, or blocks by clicking through a small badge or list box instead of guessing. Turn it on or off fastest by typing SELECTIONCYCLING and setting it to 0, 1, or 2 at the command line, clicking the icon on the status bar, or pressing Ctrl+W mid-command. Leave it off for routine work and switch it on only when you’re untangling a dense area, like overlapping walls, dimensions, or stacked blocks.
TL;DR:
Selection cycling improves object selection accuracy in overlapping areas by displaying a badge and list box, especially useful when working with dense or layered geometry.
Use Ctrl+W to toggle selection cycling instantly mid-command, with the setting controlled via command line, status bar icon, or keyboard shortcuts for maximum efficiency.
Disabling selection cycling when working on simple tasks prevents unnecessary dialog boxes; activate it only during complex, overlapping object scenarios.
Adjust list box behavior by switching between static and cursor-dependent modes and tuning pixel distance to reduce visual distraction and improve stability.
Troubleshoot non-functioning cycling by checking legacy Ctrl+click settings and ensuring “Allow selection cycling” is enabled in Drafting Settings.
Table of Contents
What Autocad Selection Cycling Actually Controls
Selection cycling exists because AutoCAD, by design, lets objects sit directly on top of each other. A wall centerline, a dimension line, and a hatch boundary can all occupy the same pixel. Without a way to sort through them, clicking that spot just grabs whichever object happens to be on top, and you end up nudging things or undoing selections out of frustration.

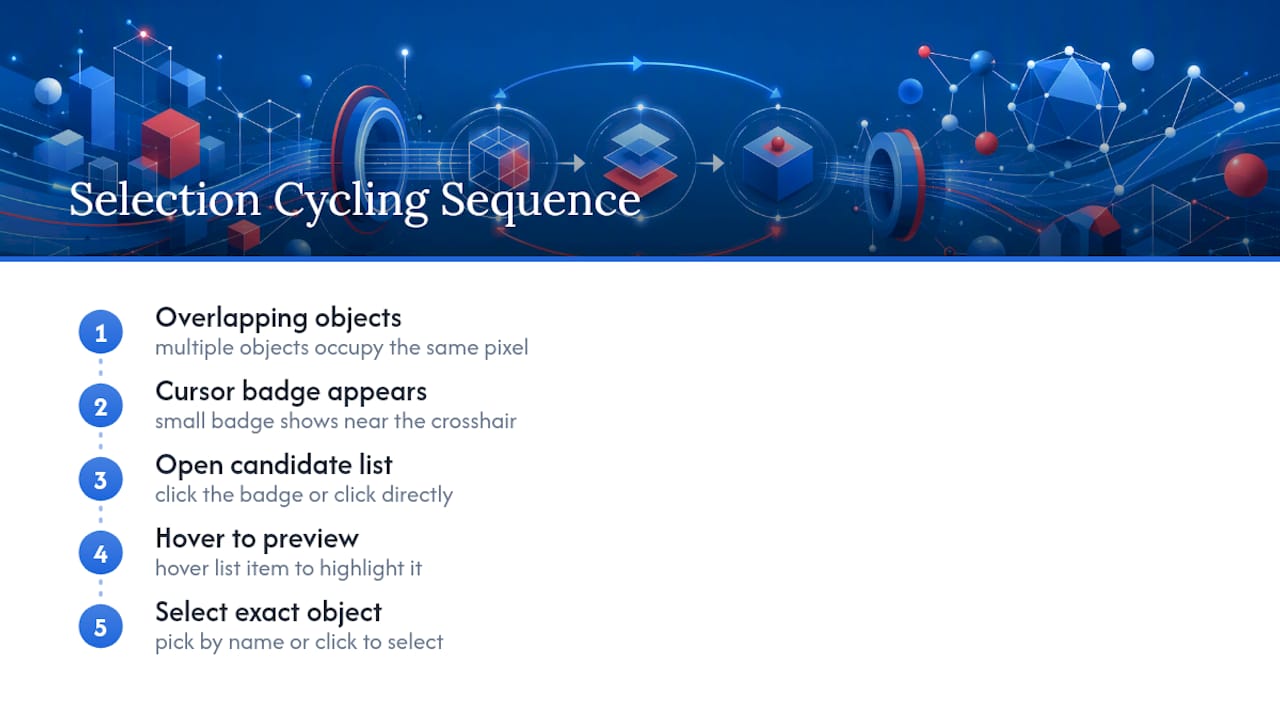

The feature works two ways depending on how you’ve configured it. A small badge appears near your cursor when multiple objects sit under the crosshair, telling you there’s more than one candidate. Click the badge, or click directly, and a list box pops up showing every object at that location, letting you pick the exact one by name or by hovering to see it highlight in the drawing. That combination of visible badge and clickable list is what most people mean when they talk about selection cycling, and it’s the core of most AutoCAD object selection questions that come up in training sessions.
It’s worth separating this from Quick Select, which filters objects by property (layer, color, type) rather than by cursor location. If you’re regularly isolating groups of objects rather than untangling overlaps, Quick Select filtering is often the faster tool.
How To Turn Selection Cycling On And Off
You have three practical ways to control selection cycling, and each fits a different moment in your workflow.
Command line control. Type SELECTIONCYCLING and press Enter, then enter a value. A setting of 0 turns the feature off completely. A setting of 1 shows the badge only, without the list box. A setting of 2 shows both the badge and the full Selection dialog box, though that combined dialog box behavior is Windows only. A negative value (like -1 or -2) stores your preferred setting in memory while turning the feature off, so you can restore it later without reconfiguring anything.
Status bar icon. Look for the overlapping-squares icon near the bottom right of your screen, next to Object Snap and Dynamic Input. One click toggles it on or off instantly, no command line needed.
Ctrl+W shortcut. This is the fastest method by far, because it works mid-command. If you’re halfway through a Move or Trim operation and hit a cluttered spot, tap Ctrl+W, make your pick, and keep working.
AutoCAD LT users get the same three toggles, though the platform’s documentation notes some display differences worth checking if your list box looks slightly different from what a colleague on full AutoCAD sees.
Selection Cycling Settings Explained
Toggling the feature on and off is only half the story. The Drafting Settings dialog gives you finer control over how the list box actually behaves, and this is where most of the frustration with “clunky” selection cycling gets solved.
Open it by typing DSETTINGS and clicking the Selection Cycling tab. From there you’re working with a short set of controls:
Allow selection cycling is the master checkbox. If it’s unchecked, none of the other settings matter because the feature is fully off regardless of what SELECTIONCYCLING says.
Display Selection list box determines whether the list box shows automatically or only when you click the badge.
Cursor Dependent positions the list box relative to your cursor every time, which sounds convenient but can feel like the box is jumping around the screen, especially on multi-monitor or high-DPI setups.
Static locks the list box to a fixed screen position instead, which most trainers, including Autodesk’s own documentation, recommend for anyone who finds the cursor-dependent mode distracting.
Distance in pixels sets how far the list box appears from your click point, and pairs with a quadrant setting so you can push it toward a corner where it won’t cover the objects you’re trying to compare.
Display title bar adds or removes the small header bar on top of the list box, mostly a cosmetic choice.
Pro Tip: If your list box seems to “jump” every time you select something near a screen edge, switch to Static and nudge the distance-in-pixels value down. That single change resolves most complaints about the list box feeling erratic.
Shortcuts And Quick Toggles For Daily Work
Ctrl+W is the shortcut worth building into muscle memory. It toggles selection cycling on or off instantly, without canceling whatever command you’re running, which makes it far more useful than opening Drafting Settings every time you hit a cluttered area.
Ctrl+W flips selection cycling on or off mid-command, the fastest method available.
Shift+Spacebar and plain Ctrl+click are legacy cycling methods from versions before the Selection dialog box was introduced in AutoCAD 2011, and you’ll still encounter them referenced in older tutorials or by colleagues trained on earlier releases.
LEGACYCTRLPICK controls whether Ctrl+click reverts to that older behavior. Setting it to 1 restores the legacy method but disables the modern list box, so only flip it if you specifically need the old workflow.
Pro Tip: Practice Ctrl+W for a week straight and it stops being a “shortcut you meant to learn” and becomes reflex, the same way Ctrl+Z is.
Why Selection Cycling Isn’t Working (And How To Fix It)
When selection cycling refuses to show a badge or list box, the cause is almost always one of four things, checked in this order.
Check LEGACYCTRLPICK first. Type it at the command line. If the value is 1, AutoCAD is running the pre-2007 Ctrl+click behavior, which overrides the modern list box entirely. Set it to 0 to restore standard behavior.
Confirm “Allow selection cycling” is checked in the Drafting Settings dialog. This checkbox can get unchecked accidentally, and when it is, SELECTIONCYCLING values stop mattering.
Look at Selection Preview settings. Selection cycling is a separate feature from Selection Preview, which highlights objects as you hover. If preview is disabled or your target objects sit on locked or frozen layers, or inside an Xref, they may not highlight or register as candidates even though cycling itself is technically on.
Adjust the list box display if it’s technically working but behaving oddly. Switching to Static and tuning the distance-in-pixels value, as covered above, resolves most reports of the box appearing in the wrong place or seeming to vanish.
Running through these four checks in order catches almost every case a reader brings to a troubleshooting forum.
Getting The Most Out Of Selection Cycling Without Slowing Down
The habit that separates efficient AutoCAD users from frustrated ones isn’t knowing every setting. It’s knowing when to leave the feature alone. Autodesk’s own guidance recommends keeping selection cycling off by default and switching it on only when you hit genuinely dense areas, because the dialog box popping up on every ambiguous click adds friction to simple selections that don’t need it.
Enable cycling only when you’re working through stacked walls, layered dimensions, or overlapping blocks, then toggle it back off with Ctrl+W.
Set the list box to Static if you’re working in a busy drawing where a cursor-dependent box would constantly reposition and distract you.
Turn off preview highlighting on locked layers and Xrefs, which cuts down on visual noise that has nothing to do with what you’re actually trying to select. Layer visibility issues like this are one of the more common drafting mistakes that quietly slow people down.
If you work in 3D, remember that SUBOBJSELECTIONMODE handles vertex, edge, and face selection separately from selection cycling, and it isn’t available in AutoCAD LT.
Pro Tip: Treat selection cycling like a flashlight, not a light switch you flip once and forget. Click it on for the messy corner of the drawing, get your object, click it back off.
Trainer Perspective: Small Habits That Save Time
The biggest mistake I see in training sessions isn’t misunderstanding the settings. It’s leaving selection cycling on permanently and then complaining that AutoCAD feels sluggish. Every simple click starts triggering a dialog box that nobody needed. Toggle it on only when you enter a dense cluster of objects, and build Ctrl+W into reflex rather than something you reach for the menu to find. Pair that with a Static list box and preview turned off on locked layers, and cycling stops being a feature you fight and starts being one you barely notice using.
— Steve
Practice These Workflows With Structured AutoCAD Training
Reading about selection cycling gets you the settings. Using it without thinking twice comes from repetition, ideally inside real drawings with the kind of overlapping geometry that shows up in actual projects rather than a demo file. S15studio’s AutoCAD training built around project work walks you through selection workflows, keyboard shortcuts, and the troubleshooting habits covered here, using drawings modeled on real architectural and technical projects rather than isolated exercises.
This training covers selection cycling alongside layer management, object snaps, and other daily-use tools that either save you time or quietly cost it, often with lifetime access to the material so you can revisit any lesson once it comes up on an actual job, helping you understand career prospects like the CAD designer salary as you build your skills. If you want the full picture of what’s covered before committing, the course details are laid out here.
Sources
FAQ
How do I turn on selection cycling in AutoCAD?
Type SELECTIONCYCLING at the command line and set the value to 1 for badge only or 2 for badge plus list box, or simply click the selection cycling icon on the status bar.
How do I turn off selection cycling?
Set SELECTIONCYCLING to 0, click the status bar icon again, or press Ctrl+W at any point, even mid-command, to toggle it off instantly.
Why is selection cycling not working in AutoCAD?
Check whether LEGACYCTRLPICK is set to 1, since that restores old Ctrl+click behavior and disables the modern list box; also confirm “Allow selection cycling” is checked in Drafting Settings.
How do I adjust the selection settings in AutoCAD?
Open the Drafting Settings dialog with DSETTINGS, go to the Selection Cycling tab, and adjust list box display, Static versus Cursor Dependent positioning, and distance in pixels to fine-tune behavior.
