20 AutoCAD Practice Projects for Beginners and Intermediates
- Steve Fagan
- 1 day ago
- 11 min read
The fastest way to build real AutoCAD skill is through project-based drawing exercises, not isolated command drills. Start with these four project groups: simple floor plans, furniture and cabinetry details, dimensioned mechanical parts, and basic 3D solids. Each one forces you to use the tools that matter most, in combinations that actually stick.
Quick starter resources to open right now:
Autodesk sample files — free DWG/DWF files covering architectural, mechanical, and visualization examples, ready to open in any AutoCAD version
SourceCAD’s 60 AutoCAD 2D & 3D Practice Drawings — a downloadable eBook with dozens of graded exercises and companion DWGs
S15studio starter course — project-based lessons taught by an Autodesk Certified Trainer, with downloadable templates included
Pick one file from the Autodesk sample index, open it, and spend 30 minutes just navigating: zoom, pan, inspect the layers. That single session teaches more than an hour of watching tutorials.
Key Takeaways
The most effective AutoCAD practice combines a small set of real projects, a structured weekly schedule, and consistent drawing review habits from the first session onward.
Point | Details |
Start with four project groups | Simple floor plans, furniture details, mechanical parts, and basic 3D solids cover the highest-value skills first. |
Master navigation and UCS early | Zoom, pan, coordinate entry, and UCS control unlock faster progress in both 2D and 3D work. |
Follow the 30-day plan | Four weeks of structured practice takes you from interface basics to a complete floor plan and an entry-level 3D model. |
Download Autodesk sample files first | The free Autodesk DWG index includes architectural and mechanical examples ready to open and inspect immediately. |
S15studio for guided practice | Steve Fagan’s project-based AutoCAD course includes downloadable DWGs, trainer support, and ACU certification prep. |
Table of Contents
The best AutoCAD practice projects for 2D drafting, ranked easy to intermediate
3D AutoCAD practice projects that build solid modeling skills
A 30-day practice plan that takes you from basics to a finished project
How to fix the most common problems during practice projects
What an Autodesk Certified Trainer actually recommends for faster progress
S15studio’s project-based AutoCAD training gives you a structured path forward
The best AutoCAD practice projects for 2D drafting, ranked easy to intermediate
These ten projects cover the core 2D workflows every AutoCAD user needs. Each entry lists what you actually practice, a difficulty level, and a realistic time estimate so you can slot them into your week.
Before you start any project: set your units (UNITS command), confirm your drawing limits, and load a layer template. Skipping this step causes scaling and plotting headaches later. Autodesk’s official drawing setup guidance makes the case clearly: environment setup is the single most common source of beginner errors.
Pro Tip: Create a starter template DWG with your units, layers, and text styles already configured. Save it as a .DWT file and open every new project from it. You will save 10–15 minutes per session and avoid the most common setup mistakes.
Title block and border — Practices LINE, RECTANGLE, TEXT, and MTEXT. Beginner. 30–45 minutes. This is the first thing every professional drawing needs, so building one from scratch teaches you more about annotation and layout than almost any other starter task.
Simple room layout (single room) — Practices OFFSET, TRIM, and basic dimensioning. Beginner. 30–60 minutes. Draw four walls, add a door swing, and dimension the space.
Furniture plan (living room or office) — Practices BLOCK creation, INSERT, and MOVE/ROTATE. Beginner. 1–2 hours. Build each piece of furniture as a block, then arrange them in the room. You will use this block-creation workflow on every architectural project you ever draw.
Door and window detail — Practices HATCH, OFFSET, and MIRROR. Beginner. 45–90 minutes. A single door detail at 1:10 scale forces you to think about lineweights and annotation standards early.
Simple floor plan (one-bedroom apartment) — Practices walls, openings, dimensions, and a basic layout tab. Low-Intermediate. LearnCAD’s step-by-step floor plan lesson estimates 2–3 hours for a complete beginner working through units, layers, walls, doors, windows, and a plotted layout. This is the single most valuable 2D project for anyone interested in architecture or construction.
Kitchen cabinetry elevation — Practices ARRAY, HATCH, and dimension styles. Low-Intermediate. 1.5–2 hours. Drawing cabinets in elevation teaches you how to manage multiple annotation layers without cluttering the drawing.
Site plan sketch with dimensions — Practices POLYLINE, SPLINE, and annotative dimensions. Low-Intermediate. 2–3 hours. Sketch a simple lot with a building footprint, driveway, and setback dimensions. For architecture students, this is a direct portfolio piece. See AutoCAD for architecture for annotation standards that apply here.
Mechanical part drawing (flat bracket) — Practices CIRCLE, TRIM, FILLET, and geometric tolerancing basics. Low-Intermediate. 1–2 hours. A flat bracket with holes and fillets is the mechanical equivalent of the floor plan: simple enough to finish, complex enough to teach precision.
Stair section detail — Practices OFFSET, HATCH, and section line annotation. Low-Intermediate. 2–3 hours. Stairs require consistent offset distances and careful hatch boundaries, which exposes gaps in your TRIM and EXTEND habits fast.
Block library sheet — Practices WBLOCK, INSERT, and attribute definitions. Low-Intermediate. 2–3 hours. Create a single sheet containing 10–15 reusable symbols (doors, windows, fixtures, north arrow). You will reference this library in every project from here on.
Adapting for speed or depth: the floor plan project scales both ways. For a quick 30-minute session, draw only the walls and one door with no dimensions. For a full documentation pass, add dimensions, a title block, annotation, and a plotted PDF layout. Same geometry, two very different learning outcomes.
3D AutoCAD practice projects that build solid modeling skills
Move to 3D once you can draw and dimension a floor plan without looking up commands. Start with primitive solids and boolean operations before attempting SWEEP or LOFT. That sequence reduces frustration significantly, and the AutoCAD practice sheets used in structured courses confirm this progression.
Box-based object (step block) — EXTRUDE and UNION. Beginner 3D. 30–45 minutes. Draw a rectangle, extrude it, then extrude a second shape and union them. This is the “hello world” of solid modeling.
Cylinder with hole (bushing) — EXTRUDE, CYLINDER, SUBTRACT. Beginner 3D. 45–60 minutes. Subtract a smaller cylinder from a larger one to create a hollow part. Boolean operations are the foundation of almost every mechanical 3D model.
Simple bracket (3D version of the flat bracket above) — EXTRUDE, FILLET, CHAMFER. Beginner 3D. 1–1.5 hours. Revisiting a 2D project in 3D shows you exactly how much the UCS matters when you are working on non-horizontal faces.
Basic furniture object (table or chair) — EXTRUDE, ARRAY 3D, UNION. Low-Intermediate 3D. 1.5–2 hours. A table with four legs teaches you 3D array and how to manage the UCS across multiple work planes.
Revolved profile (vase or turned column) — REVOLVE. Low-Intermediate 3D. 1–2 hours. Draw a profile polyline, then revolve it 360° around an axis. The result looks impressive and the command is one of the most useful in architectural detailing.
Lofted shape (tapered solid) — LOFT between two different cross-sections. Intermediate 3D. 2–3 hours. Lofting between a rectangle and a circle produces a transition solid that tests your understanding of cross-section alignment.
Simple assembly (box with lid) — EXTRUDE, SLICE, MOVE. Intermediate 3D. 2–3 hours. Model a box and a fitting lid as separate solids, then position them together. This introduces the concept of component relationships without requiring parametric tools.
Swept handrail profile — SWEEP along a curved path. Intermediate 3D. 2–3 hours. Draw a circular profile and sweep it along a curved polyline path. Handrails are a real architectural deliverable, so this one goes straight into a portfolio.
Core AutoCAD skills to practice before your first project
Jumping into a project without these fundamentals costs you time on every session. Autodesk’s tutorial hub identifies navigation, UCS, templates, and blocks as the core foundations that separate learners who progress quickly from those who plateau.
Navigation (ZOOM, PAN, ORBIT): Run a 5-minute drill: open any DWG, zoom to extents, zoom to a window, pan across the drawing, then use REGEN. The AutoCAD Foundations series shows exactly how to use the Navigation Bar for these controls. Troubleshooting note: if your scroll wheel zoom feels inverted, check ZOOMFACTOR in the Options dialog.
UCS and coordinate entry: Practice typing absolute coordinates (X,Y), relative coordinates (@X,Y), and polar coordinates (@distance<angle) for 10 minutes. Mastering coordinate entry early is what separates precise drafters from those who rely entirely on snapping. For a comprehensive AutoCAD setup guide, S15studio covers UCS setup in detail.
Units and limits: Run the UNITS command, set your drawing units to Architectural or Decimal, and set LIMITS to match your sheet size. Do this before every new drawing. Wrong units are the most common reason a downloaded DWG opens at the wrong scale.
Layers and lineweights: Create a layer set with at least five layers (walls, dimensions, text, hatch, viewport) and assign colors and lineweights. A 10-minute layer drill prevents hours of cleanup later.
Blocks and libraries: Create three blocks (a door, a window, and a north arrow), save them with WBLOCK, and practice inserting them at different scales and rotations. Building a small block library early, as Autodesk’s CAD tutorials recommend, speeds every documentation project you do afterward.
Annotation and dimension styles: Set up one DIMSTYLE with your preferred text height and arrow size. Dimension the flat bracket drawing from the 2D list above. Consistent annotation is what makes a drawing look professional rather than student-grade.
Viewports and plotting: Switch to a Layout tab, create a viewport, set the scale to 1:50, and plot to PDF. This 15-minute drill is the one most beginners skip, and it is the one that causes the most panic before a deadline.
Pro Tip: Set up your architectural drawing template with layers, dimension styles, and a title block before Week 2 of your practice plan. Every project you complete after that will look consistent and be faster to finish.
A 30-day practice plan that takes you from basics to a finished project

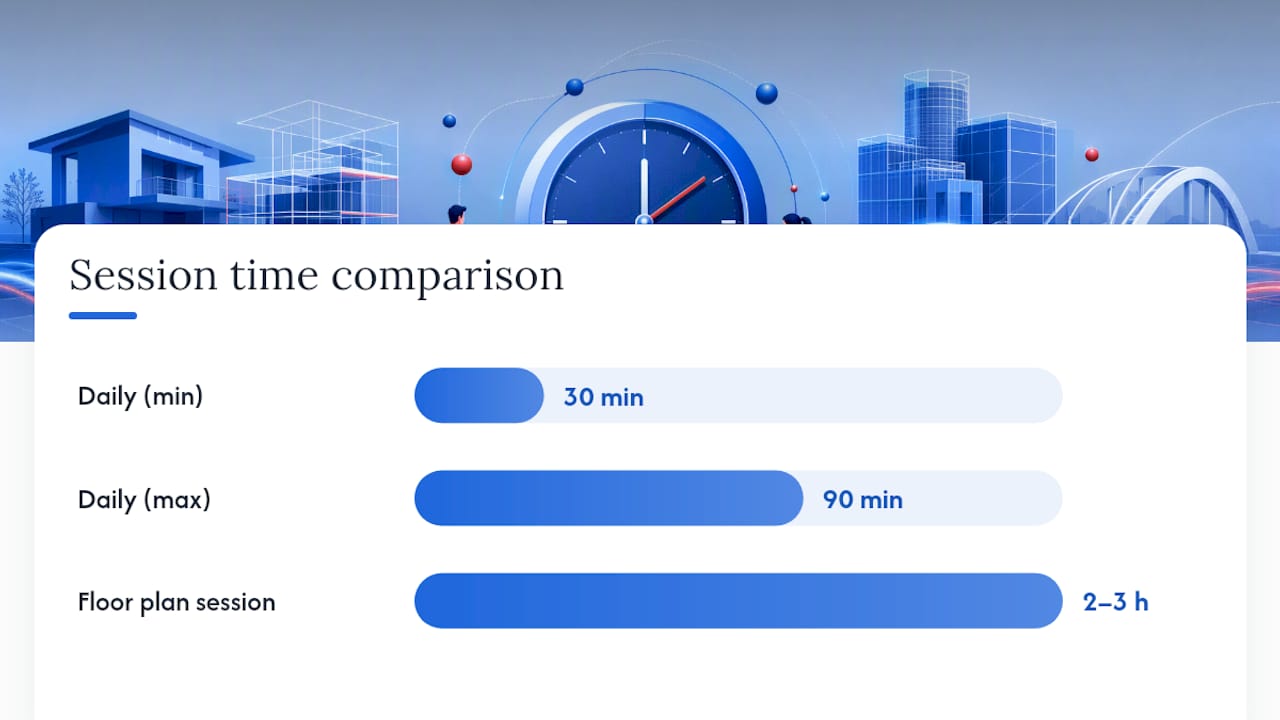

This plan assumes 30–90 minutes per day. Adjust the pace if you have more or less time, but keep the week structure intact. Progressive exercise collections used in college AutoCAD courses follow the same basic→intermediate→advanced arc.
Week 1 — Interface and core drills: Open AutoCAD, run the navigation drill (zoom, pan, orbit), practice coordinate entry, set up units and limits, and create your starter template. Milestone: you can open a blank drawing, set it up correctly, and draw a dimensioned rectangle without looking up a command.
Week 2 — 2D project focus: Complete the title block, single room layout, and furniture plan projects. Spend one session opening an Autodesk sample architectural DWG and inspecting its layers and annotation. Milestone: a saved, dimensioned furniture plan with a title block.
Week 3 — Blocks, templates, and intermediate 2D: Build your block library sheet, complete the floor plan project (budget the full 2–3 hours), and set up your dimension style. Milestone: a complete one-bedroom floor plan, plotted to PDF at the correct scale.
Week 4 — 3D introduction and final project: Complete the step block and bushing projects, then attempt the revolved profile. Finish the week by revisiting your floor plan and adding a 3D massing model of the same building. Milestone: one saved 3D solid and a revised floor plan with a proper layout.
Documenting progress: save a new version of your DWG after each session (Floor_Plan_v01.dwg, Floor_Plan_v02.dwg). Take a screenshot before and after major changes. Write two sentences in a text file about what you struggled with. This habit makes it easy to track improvement and gives you material to discuss with a trainer or in a forum.
Where to download AutoCAD practice files and DWGs
The sources below cover the main download options. Check units and template type before editing any downloaded file — a metric DWG opened in an imperial template will look correct on screen but plot at the wrong scale.
Source | File types | What you get | Best for |
DWG, DWF | Architectural (Imperial), Mechanical (Imperial), visualization examples | Inspecting professional layer and annotation conventions | |
PDF eBook + DWG | 60 graded 2D and 3D exercises with companion drawing files | Structured, instructor-style practice from beginner to intermediate | |
Web lesson + PDF | Step-by-step floor plan project with time estimate | First complete architectural project | |
S15studio starter materials | DWG, PDF, templates | Project-based exercises with trainer support and downloadable notes | Guided practice with certification prep built in |
How to open a sample DWG safely: open the file, type AUDIT and press Enter to check for errors, then run PURGE to remove unused layers and blocks. Check the UNITS setting before you draw a single line. For files that come in metric when you need imperial, use the SCALE command with a factor of 25.4 (or 0.03937 in reverse) to convert geometry, then reset your UNITS. For a deeper look at reading professional drawings, the guide to understanding shop drawings covers annotation and layer conventions that transfer directly to AutoCAD practice files.
How to fix the most common problems during practice projects
Most beginner frustrations trace back to a small set of recurring issues. Here is how to handle them.
Objects appear at the wrong scale. This almost always means your units were set incorrectly when you started the drawing, or you inserted a block that was drawn in a different unit system. Fix it with the SCALE command, or start fresh with the correct UNITS setting and re-draw. Prevention beats correction every time.
Dimensions look wrong or text is too small to read. Your DIMSTYLE is set to a fixed text height that does not match your drawing scale. Open DIMSTYLE, set the overall scale factor to match your plot scale (for example, 50 for a 1:50 drawing), and update all existing dimensions with DIMUPDATE.
Hatch does not fill a closed boundary. The boundary has a gap. Use the BOUNDARY command to detect the gap, zoom in to find it, and close it with a short LINE segment. Then re-run HATCH.
The drawing looks fine in Model space but plots blank or at the wrong scale. You are plotting from Model space instead of a Layout tab, or your viewport scale is not locked. Switch to a Layout, set the viewport scale explicitly (double-click inside the viewport, then type ZOOM followed by the scale factor, such as 1/50XP for 1:50), then lock the viewport before plotting.
Blocks insert at the wrong size. The block was created at a different unit scale. When inserting, check the Insert dialog’s scale fields, or use the INSUNITS variable to set a consistent unit for block insertion across your drawing.
Layer standards are inconsistent across downloaded files. This is normal. Open the Layer Manager, rename layers to match your template standard, and use LAYMRG to merge duplicates. The AutoCAD drawing standards guide covers the layer naming conventions used in professional practice.
What an Autodesk Certified Trainer actually recommends for faster progress
Most learners practice too passively. They complete a project, save it, and move on. The ones who improve fastest do one extra thing: they review their own work against a short checklist before closing the file.
That checklist does not need to be long. Ask yourself: Are all objects on the correct layer? Are dimensions consistent and readable at the plot scale? Is the title block complete? Could someone else open this file and understand it without asking you a question? If the answer to any of those is no, fix it before you move on. That review habit, done consistently, is worth more than doubling your practice hours.
On the question of feedback: post your completed drawings to AutoCAD forums, share them with classmates, or submit them for trainer review. Peer critique catches the things you cannot see in your own work, especially annotation inconsistencies and layer misuse. The S15studio YouTube channel includes walkthrough videos that show what a clean, professional drawing looks like at each stage, which gives you a concrete benchmark to compare against.
When a project is clean enough that you would not be embarrassed to show it to a client or employer, it is ready to be a portfolio piece. The floor plan, the mechanical bracket, and the revolved profile from the 3D list above all qualify. Save a PDF export alongside the DWG and keep both in a dated folder.
S15studio’s project-based AutoCAD training gives you a structured path forward
Self-directed practice gets you started, but a structured course closes the gap between “I can draw this” and “I can deliver this professionally.” S15studio’s AutoCAD training, built by Autodesk Certified Trainer Steve Fagan, is designed specifically for the beginner-to-intermediate progression this article covers.
Every course includes real project files, downloadable DWG templates, PDF notes, and direct trainer support. You also get certification prep for the Autodesk Certified User (ACU) exam built into the curriculum, so practice projects double as exam preparation. Lifetime access means you can revisit any lesson when a new project type comes up at work.
If you have finished the 30-day plan above and want a clear next step, the complete AutoCAD training course picks up exactly where self-practice leaves off. For a full training and certification package, the Revit and AutoCAD training bundle covers both tools in one structured program.
